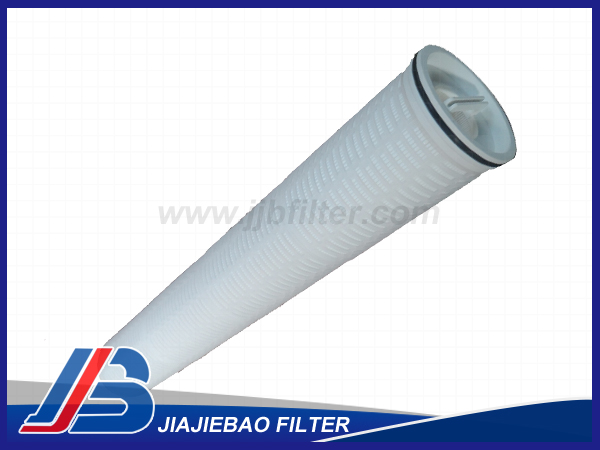

HFU640UY045J Pall High Flow Water filter element
【Model Number】:
【Nominal filtration rating】:
【Filter media】:
【Operating pressure】:
【Material】:
Brief Introduction:
Pall large flow filters have a big diameter of 6 inches/152mm, but no center support frame. Only one end of the filter is open and its flow manner of filtering fluid is from inside to outside. The big diameter of filter elements increases effective filtering areas, and greatly reduces the amounts of filter element and the size of its body case. Due to its large flow and long life, Pall large flow filter can lower investment and human cost in many applications.
Technical Parameters:
Material of Constructions
---Filter media: Pleated glass fiber, Pleated depth Polypropylene(PP), pp Melt blown
---Support/Drainage: Polypropylene(PP)
---End caps: Glass fiber reinforced Polypropylene
---Seal Material: EPR,NBR
Applications:
1)RO cartridge filtration and seawater desalination pretreatment
2)Filtration of condensed water in power plants
3)Filtration of bulk drug, solvent, and water in bio-pharmacy industry
4)Filtration of bottled water, liquid glucose, edible oil, juice, soft drink and milk
5)Painting, petrochemical industry
6)Micro-electronics, film, fiber, resin
