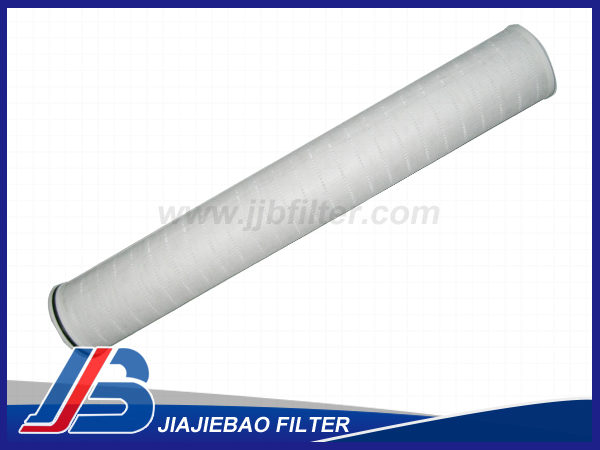

    HFU640UY020J PALL Large Flow Filter element
    HFU640UY020J PALL Large Flow Filter element

    HFU640UY020J PALL Large Flow Filter element

    【Model Number】:

    【Nominal filtration rating】:

    【Filter media】:

    【Operating pressure】:

    【Material】:

    E-mail:jjbfilter@163.com

    Brief Introduction:

    Pall large flow filters have a big diameter of 6 inches/152mm, but no center support frame. Only one end of the filter is open and its flow manner of filtering fluid is from inside to outside. The big diameter of filter elements increases effective filtering areas, and greatly reduces the amounts of filter element and the size of its body case. Due to its large flow and long life, Pall large flow filter can lower investment and human cost in many applications.
    HFU640UY020J Pall


    Technical Parameters:

    outer diameter: 6"(152mm)
    Length:40"(1022mm)
    Filter material: folding glass fiber, folding deep polypropylene(PP), MBPP
    Support/Diversion layer: polypropylene (PP)
    End cap: reinforced polypropylene with glass fiber
    Seal material: EPR (Ethylene-Propylene Rubber), nitrile rubber

    Applications:

    1)RO cartridge filtration and seawater desalination pretreatment
    2)Filtration of condensed water in power plants
    3)Filtration of bulk drug, solvent, and water in bio-pharmacy industry
    4)Filtration of bottled water, liquid glucose, edible oil, juice, soft drink and milk
    5)Painting, petrochemical industry
    6)Micro-electronics, film, fiber, resin
