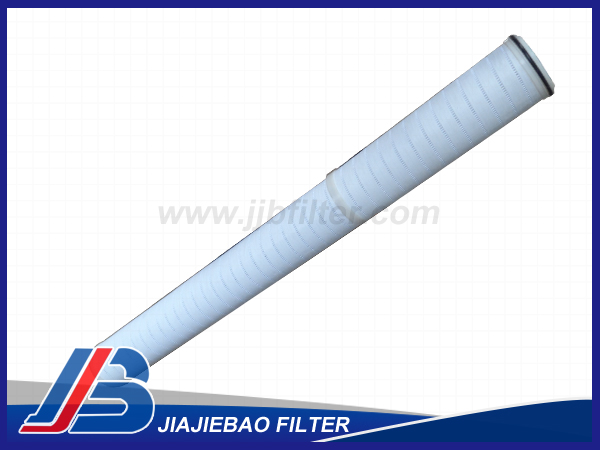

HFU660GF100H13 Pall Large Flow Filter element

【Model Number】:

【Nominal filtration rating】:

【Filter media】:

【Operating pressure】:

【Material】:

E-mail:jjbfilter@163.com

Brief Introduction
Technical Parameters
Applications
Related Products

Brief Introduction:

Pall High Flow Filter Cartridge is made of diameter 6 "(152mm), single open end, port size 180mm, without inner core, inside to outside flow direction. End caps and filter layer using hot-melt welding, no bonding agent, with a wide range of chemical compatibility, can be applied to various fields.
PALL HFU660GF100H13

Technical Parameters:

Filtering accuracy: 1μm,4.5μm,6μm,10μm,20μm,40μm,70μm,100μm
Highest operating temperature:
           folding glass fiber: 121℃
           folding deep polypropylene(PP): 82℃
           MBPP:65℃
Maximum pressure drop:
          folding glass fiber:3.4bar,121℃
          folding deep polypropylene(PP):3.4bar,82℃
          MBPP:1.03bar,65℃
Recommended pressure drop for filter replacement: 2.4Bar ，20℃
Recommended maximum filtering water flow:
          20"filter: 660L/min
          40"filter: 1300L/min
          60"filter: 1900L/min

Applications:

1)RO cartridge filtration and seawater desalination pretreatment
2)Filtration of condensed water in power plants
3)Filtration of bulk drug, solvent, and water in bio-pharmacy industry
4)Filtration of bottled water, liquid glucose, edible oil, juice, soft drink and milk
5)Painting, petrochemical industry
6)Micro-electronics, film, fiber, resin
