PP Melt Blown Filter Element

【Model Number】:

【Nominal filtration rating】:

【Filter media】:

【Operating pressure】:

【Material】:

E-mail:jjbfilter@163.com

Brief Introduction
Technical Parameters
Applications
Related Products

Brief Introduction:

The melt blown filter element is a tubular element made of non-toxic and tasteless polypropylene particles, which is heated, fused, sprayed, drawn and accepted. If the material is polypropylene based, it can be called the PP melt blown filter element.

Not only in a large number of water purification, but also has excellent chemical compatibility, suitable for the filtration of strong acid, strong alkali and organic solvents. The utility model has the advantages of strong pollution receiving capacity, long service life and low cost.

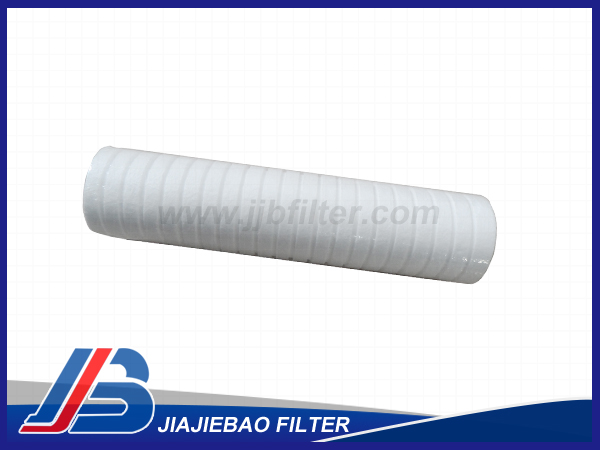

PP Melt Blown filter element

Technical Parameters:

Filter Size：
External diameter：63mm，110mm
Inner diameter：28mm，30mm
Length：9.75" 、9.87" 、10" 、20" 、30" 、40" 、50" 、60"
Material：
Filter material：polypropylene (PP)
End cover：polypropylene
Center pole: polypropylene
Spacer/ seal ring: silicon rubber, Ethylene Propylene Rubber (EPR., nitrile rubber buna (NBR., FPM
Filter element performance:
Filtering accuracy: 1μm、3μm、5μm、10μm、25μm、50μm、75μm、100μm、150μm
The highest operating temperature: ≤80℃
The maximum PSID (Pounds per Square Inch Differential.: 2.0Bar，21℃

Applications:

a. Drinking water filtration and RO reverse osmosis filtering

b. Acid and alkali liquid filtration in chemical process

c. Ndustrial water and electroplating water's filtration

d. Liquid medicine used for imaging and ink filter

e. Sterile water and ultrapure water's filtration in advance

f. Chemical raw materials and organic solution's filtration
