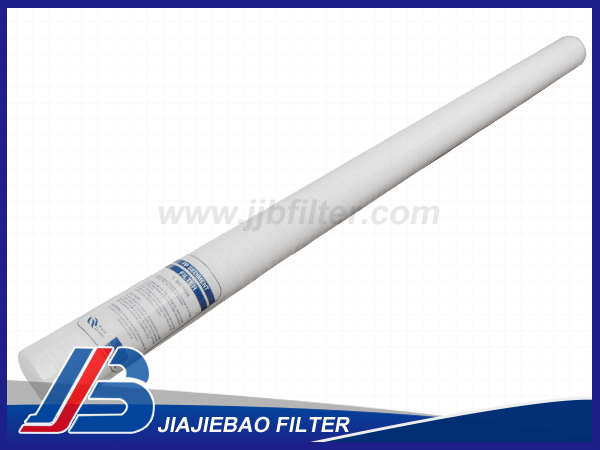

5 Micron Slotted PP Melt-Blown Filter Cartrige
【Model Number】:
【Nominal filtration rating】:
【Filter media】:
【Operating pressure】:
【Material】:
Brief Introduction:
PP melt-blown Filter Element is composed of polypropylene superfine fiber which melted and entangled at high temperatures. The fiber without any chemical adhesives forms three-dimensional micro porous structure which integrates the surface, the deep and the coarse filter together. Because the fiber and density in the diameter direction of the filter forms deep filtering structure with high filtration precision, high pollutant assimilative capacity, small pressure difference, dense inside and sparse outside gradient aperture structure. It has strong pollutant assimilative capacity, and can effectively remove the impurities such as suspended solids in the flow of fluid, particles, rust, etc. it also have a good filtering performance and long service life.
Technical Parameters:
Filter Size：
External diameter：63mm，110mm
Inner diameter：28mm，30mm
Length：9.75" 、9.87" 、10" 、20" 、30" 、40" 、50" 、60"
Material：
Filter material：polypropylene(PP)
End cover：polypropylene
Center pole: polypropylene
Spacer/ seal ring: silicon rubber, Ethylene Propylene Rubber (EPR), nitrile rubber buna (NBR), FPM
Filter element performance:
Filtering accuracy: 1μm、3μm、5μm、10μm、25μm、50μm、75μm、100μm、150μm
The highest operating temperature: ≤80℃
The maximum PSID (Pounds per Square Inch Differential): 2.0Bar，21℃
Applications:
1. used in drinking water filtration, RO antiosmosis filtration
2. used in the acid and alkali liquid filtration in industrial chemistry
3. The filtration of industrial water and plating solution
4. The filtration of imaging solution and ink
