DN15 Y-Type Strainer

【Model Number】:

【Nominal filtration rating】:

【Filter media】:

【Operating pressure】:

【Material】:

E-mail:jjbfilter@163.com

Brief Introduction
Technical Parameters
Applications
Related Products

Brief Introduction:

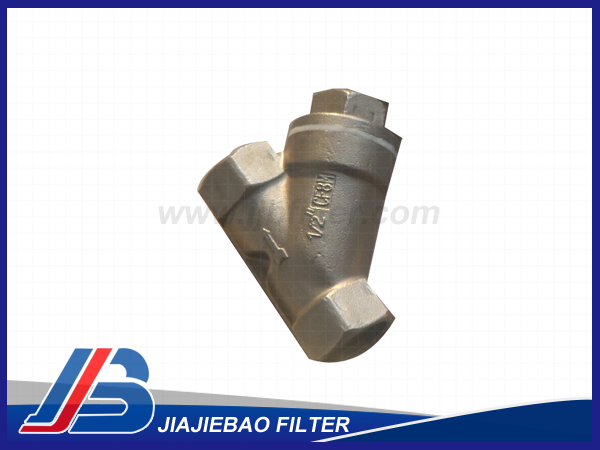

DN15 Y-Type Strainer
Y-Type Strainer is indispensable to a device pipeline system.The function is to filter the mechanical impurities in the medium; rust and sand in the sewage and solid particals in the liquid so that it can protect the parts of tube from abrasing and blocking.What’s more it can ensure the normal use of the equipment.
Y-Type Strainer is a small equipment that can remove the solid particles. It can ensure the normal work of the equipments. When the liquid enter the filter drum with a certain filter screen, the impurities are stopped and the pure liquid can discharged from the filter. Just remove the removable filter drum and reload it when needed washing. Therefore, the operation and maintenance are convenient too.
Y-Type Strainer

Technical Parameters:

DN15 Y-Type Strainer Technical Parameters:

Nominal diameter: DN15

Working temperature: -30℃－200℃

Filtering accuracy(mesh): 10-300

Seals material: nitrile -butadiene rubber (NBR), fluoro rubber(FPM), oil-resisting asbestos

Working pressure: 1.0Mpa,1.6Mpa

Body Material: carbon steel,stainless steel 201,304,316

Applications:
