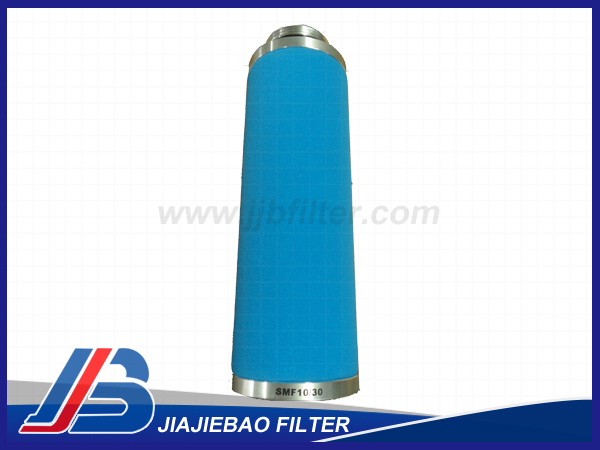

Ultrafilter 10/30 Precision Filter Element

【Model Number】:

【Nominal filtration rating】:

【Filter media】:

【Operating pressure】:

【Material】:

E-mail:jjbfilter@163.com

Brief Introduction
Technical Parameters
Applications
Related Products

Brief Introduction:

In any conditions, untreated air contains a lot impurities, such as: oil, water, solid particles and so on. If you do not remove these impurities, it will affect the life of equipment, and even threaten the normal operation of the system. The compressed air is the main security energy of the large-scale industrial production, so precision filtering of the air is particularly important.
Ultrafilter 10/30

Technical Parameters:

Ultrafilter Series

Flow rate (NM³/min)	Model
0.016	02/05
0.5	03/05
1	03/10
1.5	04/10
2	04/20
3	05/20
4.5	05/25
6	07/25
7	05/30
8	07/30
12	10/30
18	15/30
24	20/30
32	30/30
48	30/50

Precision(um)	Oil Residue Component(ppm)
PE Level:25,5,1	5
SB Level:50,25,5
FF Level:0.01	1
MF Level:0.01	0.03
SMF Level:0.01	0.01
AK Level (activated carbon):0.01	0.003
P-SRF (sterilization type)
