Hydac filter

【Model Number】:

【Nominal filtration rating】:

【Filter media】:

【Operating pressure】:

【Material】:

E-mail:jjbfilter@163.com

Brief Introduction
Technical Parameters
Applications
Related Products

Brief Introduction:

1. Introduction

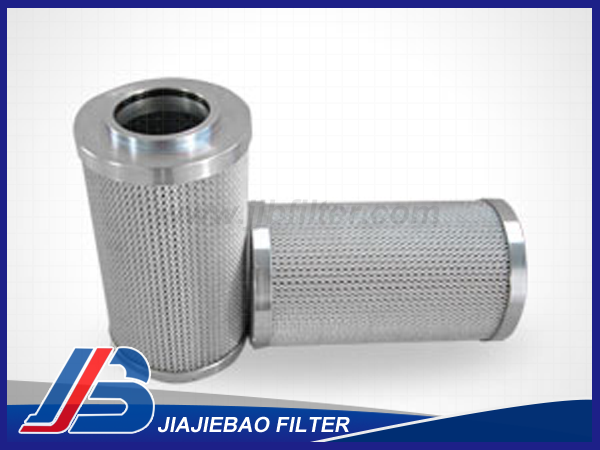

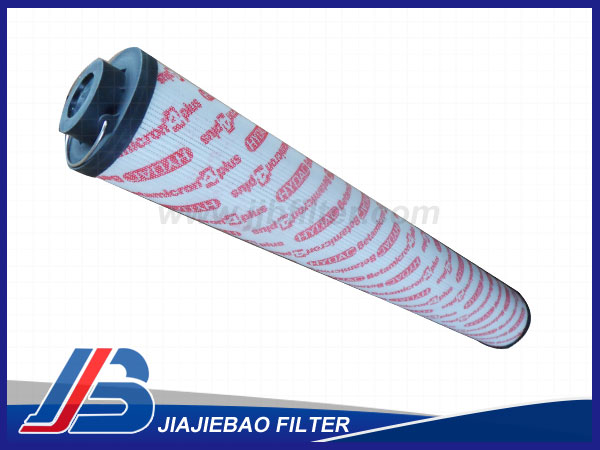

Hydac Filters mainly from the internal filter to the main filtering effect, mainly used for wind power equipment lubricating oil filtration, Filter core material is glass fiber non-woven fabric, protection filter cold start the pressure to withstand, The main filter by the multi-layer filter media folded, placed in a piercing support skeleton around, The filter cartridge is mounted on the outlet cover of the filter.

2. Instructions

0 6 6 0 D 0 1 0 BN3HC
∣ ∣ ∣ ∣

Flow rate High pressure Precision Filter material

R: Return Oil

D系列

R系列
3. Typical model codes:

1.	0060R*BN/HC	12.	0165R*BN/HC
2.	0080MA*BN3HC	13.	0180MA*BN3HC
3.	0080MG*BN4HC	14.	0240R*BN/HC
4.	0085MA*BN/HC	15.	0330R*BN4HC
5.	0090MA*BN3HC	16.	0480R*BN/HC
6.	0095DMA*BN4HC	17.	0500R*BN3HC
7.	0100S*BN/HC	18.	0660R*BN4HC
8.	0110R*W/HC	19.	0850R*BN/HC
9.	0160MA*BN/HC	20.	0950R*BN3HC
10.	0160MG*BN/HC	21.	1300R*BN4HC
11.	0160R*V/HC	22.	2600R*BN4HC

1.	0030D*BN/HC	12.	0160D*BN3HC
2.	0035D*BN3HC	13.	0160DN*BN3HC
3.	0040D*BN3HC	14.	0240D*W/HC
4.	0055D*BN3HC	15.	0250DN*BN3HC
5.	0060D*BN3HC	16.	0280D*BN/HC
6.	0060D*BN3HC	17.	0330D*BH4HC
7.	0063DN*BN3HC	18.	0400DN*BN3HC
8.	0075D*BN3HC	19.	0500D*V3HC
9.	0095D*BN3HC	20.	0630DN*BN3HC
10.	0100DN*BN3HC	21.	0660D*BN4HC
11.	0140D*BN3HC	22.	0990D*BN3HC

Technical Parameters:

1.The quality and performance can be guaranteed as original elements.
2.Temperature Range: -4°F~212°F
3.Seals: nitrile seals, fluorocarbon seals for corrosive fluids.
4.Collapse pressure rating: 21bar-210bar (Hydraulic Liquid Filtration)
5.Filtering precision: 3, 5, 10,20 and 50 micron.
6.Filter Medium: glass fiber, filter paper, stainless steel sinter fiber and stainless wire mesh.
7.Fluid Compatibility Compatible with all petroleum oils,water glycols, oil/water emulsions, high water base fluids,and synthetic fluids compatible with Fluoro Rubber or EPR seals.

Testing standards

ISO 2941------Collapse & Burst Resistant
ISO 2942------Fabrication & Integrity Test
ISO 2943------Material Compatibility with Fluids
ISO 3724------Flow Fatigue Characteristics
ISO 3968------Pressure Drop vs. Flow Rate
ISO 16889------Multi-pass Performance Testing

Applications:

In hydraulic, lubrication system, this kind of filter can be used to filtrate solid particles, colloidal substances and other pollutions in working processes. They can efficiency to control the pollution grades in the working processes to ensure the normal work of the hydraulic system.
1. In the machine tool industry, currently 85% of the machine drive system uses a hydraulic drive and control. Such as grinders, milling machines, planer, broaching machine, presses, shears, and a combination of machine tools.
2. In construction machinery, the widespread adoption of hydraulic transmission, such as excavators, loaders tire, truck cranes, crawler dozers, wheel crane, self-propelled scrapers, graders and vibratory roller and so on.
3. In the agricultural machinery, the use of hydraulic technology is very broad, such as combine harvesters, tractors and plows.
4. In the automotive industry, hydraulic off-road vehicles, hydraulic dump truck, hydraulic aerial vehicles and fire engines all adopts hydraulic
technology.
5. In the textile industry, the use of hydraulic technology plastic injection molding machine, rubber vulcanizing machine, paper machine, printing and textile machines.
