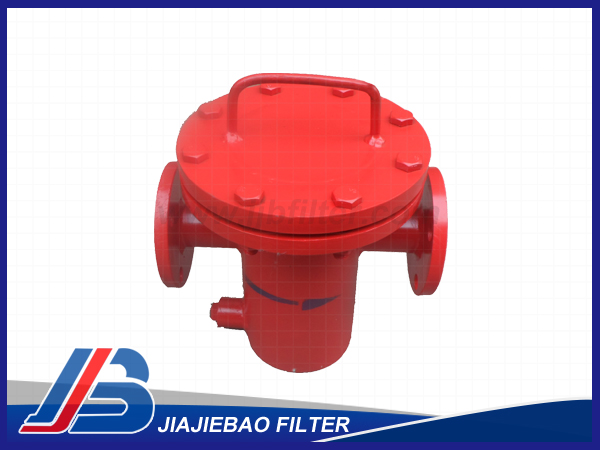

DN40 Active Carbon Steel Basket strainer
【Model Number】:
【Nominal filtration rating】:
【Filter media】:
【Operating pressure】:
【Material】:
Brief Introduction:
The Basket strainer function is to filter the mechanical impurities in the medium; rust and sand in the sewage and solid particals in the liquid so that it can protect the parts of tube from abrasing and blocking. What’s more it can ensure the normal use of the equipment. The Basket Filter usually connected by flange.
Technical Parameters:
|
Housing's materials |
Brass |
Carbon steel |
Stainless steel |
|
Inside nominal diameter |
15-500mm |
|
Material of filter mess |
stainless steel |
|
Seal material |
Oil resistant asbestos, soft graphite,PTFE |
|
Working temperature(°c) |
-30 - 380 |
- 80 - 425 |
-80 - 450 |
|
Pressure(mpa) |
1.6-10 MPA |
|
Filtration precision |
10-300 |
Applications:
1. Weak corrosive materials in the chemical, petrochemical production ,eg: water,ammonia,oil,hydrocarbon;
2. Chemical production of corrosive materials .eg: caustic soda,soda ash,dense and dilute sulphuric acid,carbonic acid,acetic acid,ester acid;
3. Low temperature materials in the refrigeration. eg : liquid methane, liquid ammonia,liquid oxygen and all kinds of refrigerating fluid;
4. Light food,pharmaceutical production,health requirements of the material . eg : beer,drink,dairy products,medicine appliance.
